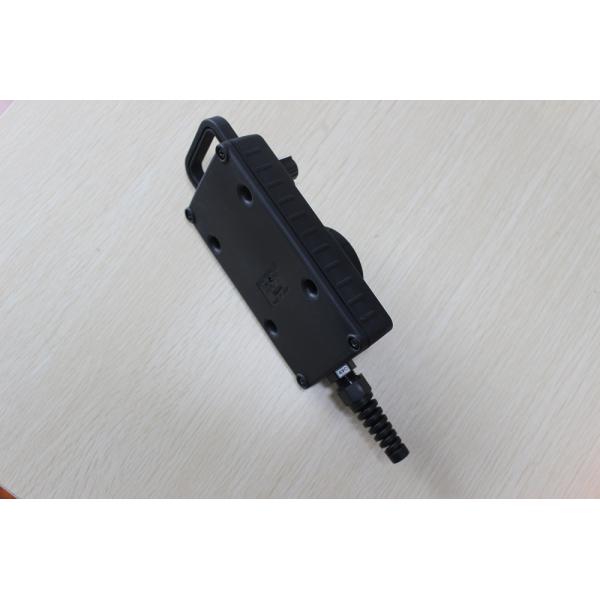

TOSOKU Photoelectric Encoder Unit HC115 CNC Electronic Handwheel

Name: TOSOKU Photoelectric Encoder Unit HC115 CNC Electronic Handwheel
Brand: Silvercnc
Price: 50 USD

Quality TOSOKU Photoelectric Encoder Unit HC115 CNC Electronic Handwheel for sale

Brand Name : Silvercnc

Model Number : HC115 Series

Place of Origin : China

MOQ : 1 set

Price : $50-1000

Payment Terms : T/T, L/C

Supply Ability : 500pcs per month

Delivery Time : 5-7 work days

Packaging Details : cardboard

Certification : ISO9001

Color : Black

Quality : High Precision

size : 125x72x25(mm)

Rotary encoder unit : TOSOKU Photoelectric all metal pulse

Option switch : axis off x y z 4 5 6, ratio x1 x10 x100

Cable : Oil resistant helix, static 1.6m, tensile 5.5m

Condition : New

Service : Warm And Quick Response Service Provided By Professional Export Sales

Contact Now

High precision electronic hand wheel

1. Suitable for a variety of control systems such as: Fanuc,Siemens,Mitsubishi,Heidenhain,Fagor
2. Axis and ratio options can be customized according to requirements
3. Compact, light and RoHS compliant
4. The rotary cover can be marked according to customers

System selection
HC115 Series	Sign(A B), voltage(5V),palus (100PPR), Suitable for FANUC systems
HC121 Series	signal(A B),voltage(5-12V),palus (25PPR), Suitable for Mitsubishi
HC11D Series	signal(A B -A -B),voltage(5V), Suitable for Siemens systems

specifications

size	125x72x25(mm)
indicator light	red
Immunity	EN50082-2 standard
Other specifications	Customizable logo
Rotary encoder unit	TOSOKU Photoelectric all metal pulse
Option switch	axis off x y z 4 5 6, ratio x1 x10 x100
Cable	Oil resistant helix, static 1.6m, tensile 5.5m
Warranty period	1 year

Wiring diagram
	Line color	signal	describe
Pulse generator	red	v+	According to the requirements of control system
	black	OV	According to the requirements of control system
	yellow	A
	white	B
	pink	A¯	Only when differential signal output is selected
	green	B¯	Only when differential signal output is selected
Magnification	Light green black	X1	Magnification switch
	Light blue black	X10
	Transparent black	X100
	Dark blue	COM	Common point
		OFF	Coordinate axis switch, no wiring
Axis	Trace	X axis
	orange	Y axis
	Light blue	Z axis
	Dark blue	4 axis
	grey	5 axis
	transparent	LED+	DC5V-24V
	Lavende	LED-	OV
